vLA82S+ Spectrum ULA Replacement with RGB interface and AY Emulator – Both External and Internal interfaces included.

The vLA82S+ is a modern plugin replacement for the Spectrum 48K ULA (type 6C001E-7 or earlier). The vLA82S+ combines the original vLA82 capability with the addition of an RGB video interface and AY compatible sound.

Offer includes:

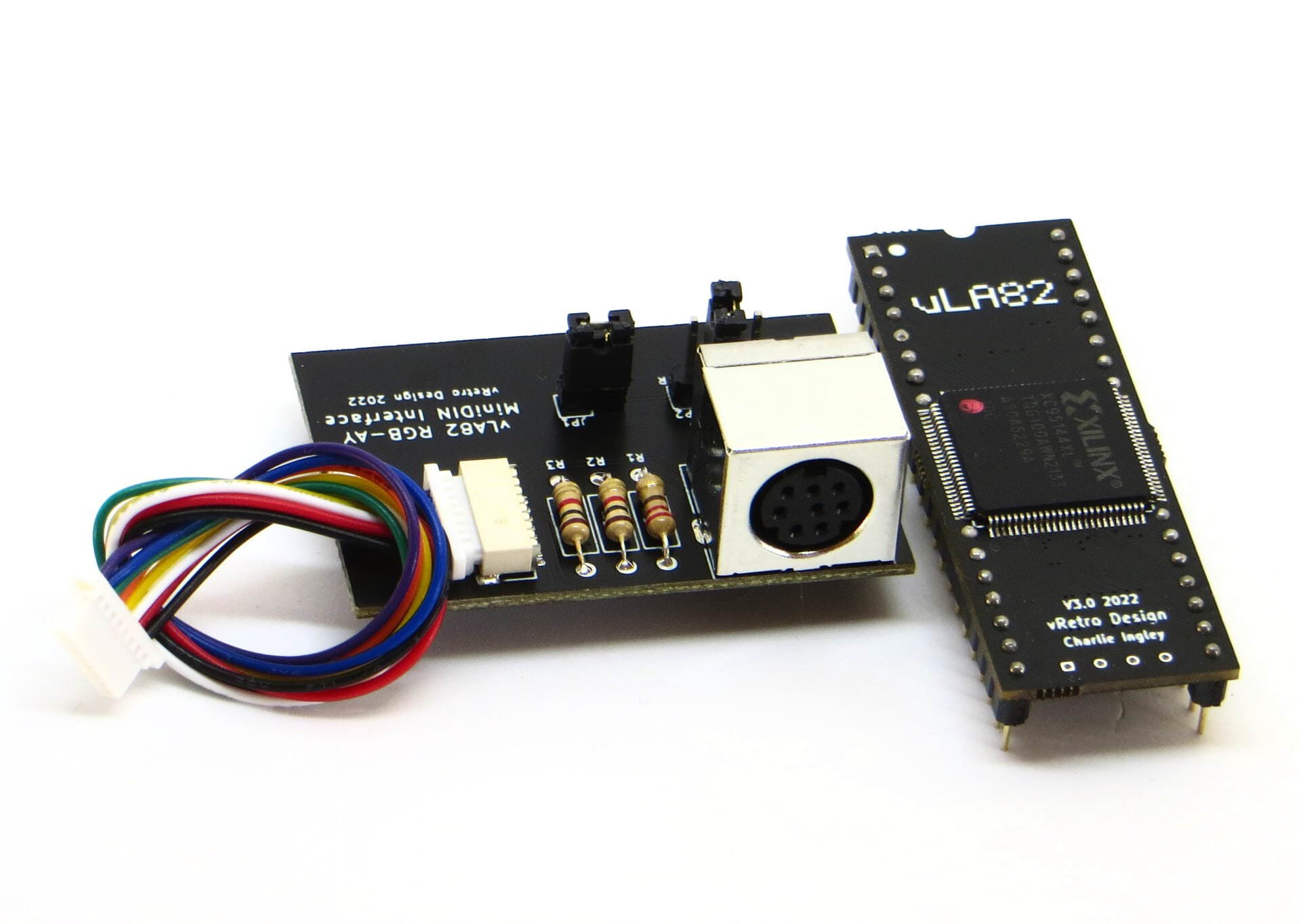

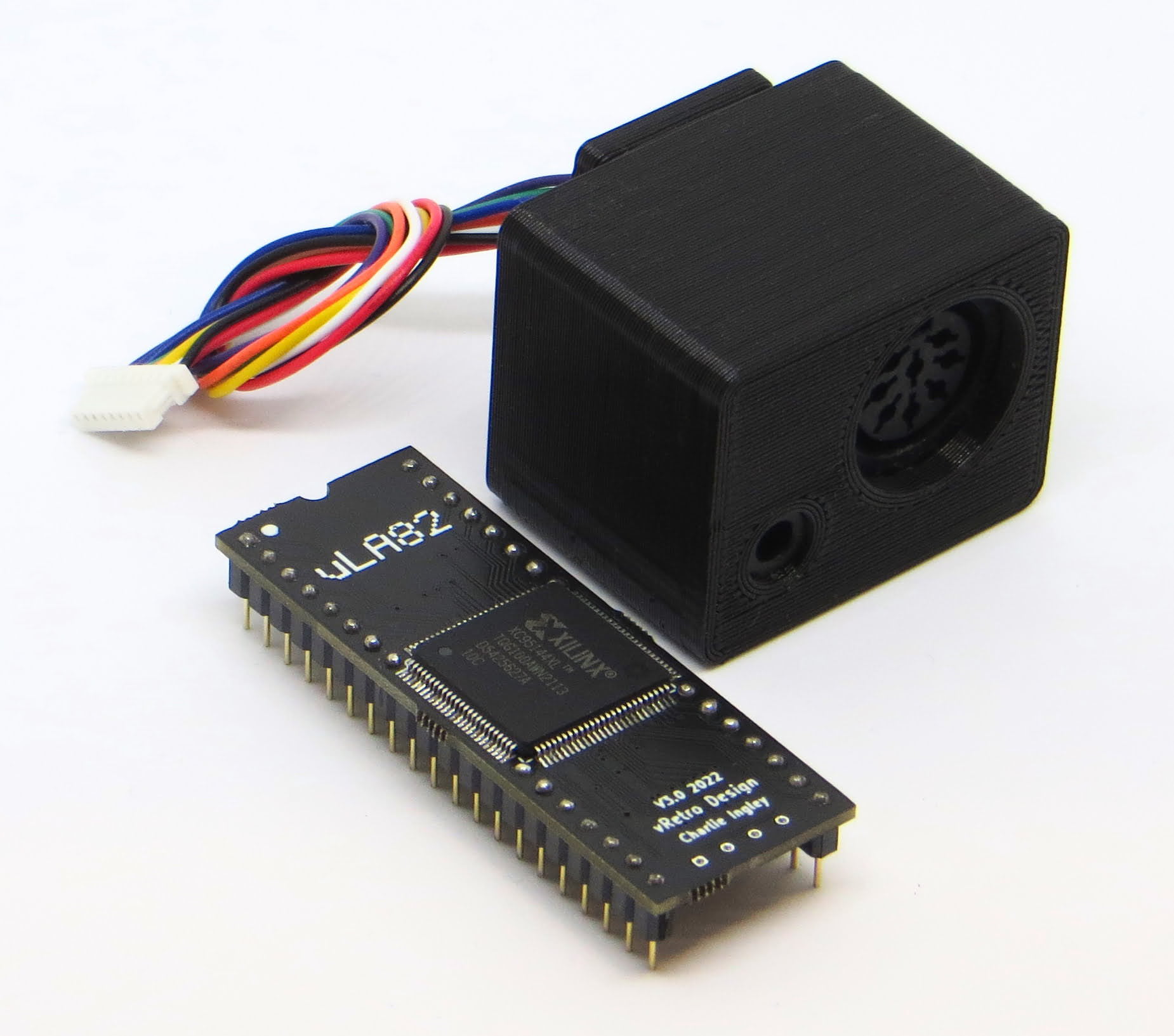

1 x vLA82S+ along with both internal and external RGB video interfaces.

vLA82S+ Features include:

– Plugin ULA replacement. In most cases the existing socket will be OK. Note that turned pin sockets can give problems with the narrow pins the vLA82S+ uses.

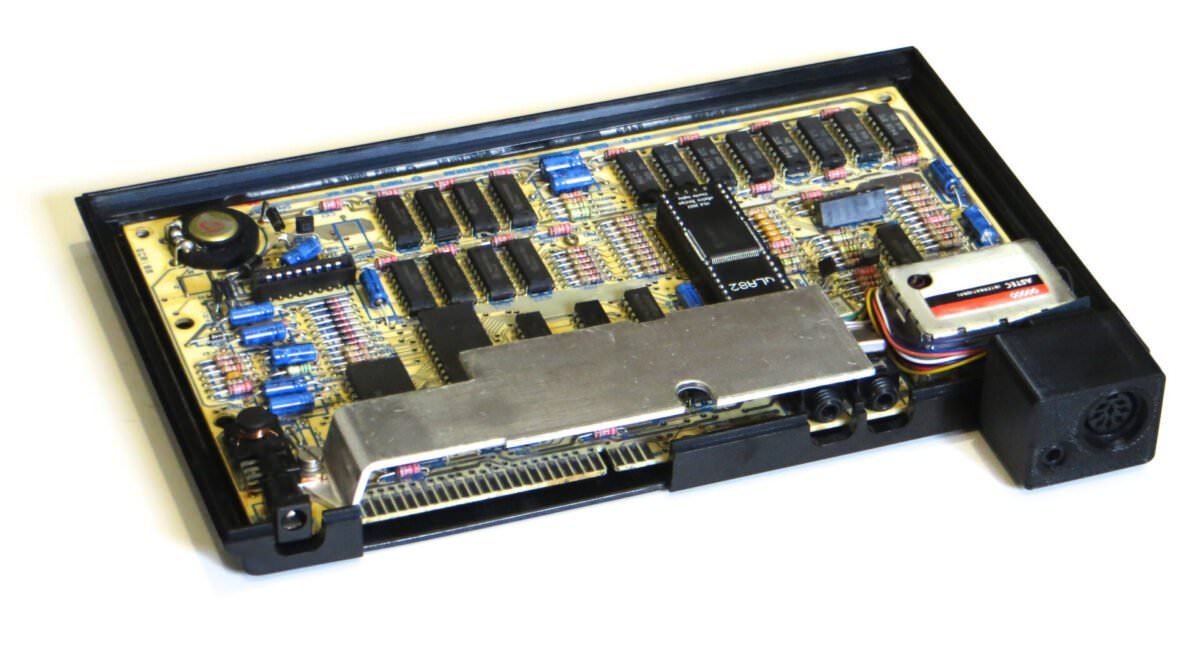

– A low profile and 40 pin DIL footprint means that the vLA82S+ is designed to fit in a ‘rubber key’ ZX Spectrum case as well as the ZX Spectrum+ enclosure.
– Provides 100% functionality of the 6C001-7 Sinclair ULA as well as supporting the higher quality video and sound enhancements.
– Passes standard ULA benchmark tests (floatspy, Brendan’s Diagnostic ROM etc.).
– Tested with an extensive suite of ZX Spectrum software.
– Compatible with lower ram replacement modules.
– Ideal for installing in an aftermarket Spectrum PCB without needing an original ULA.
– Low power consumption.

For crisp RGB video and dynamic AY sound, the vLA82S+ Spectrum ULA Replacement with RGB interface and AY Emulator is exaclty what you need!
