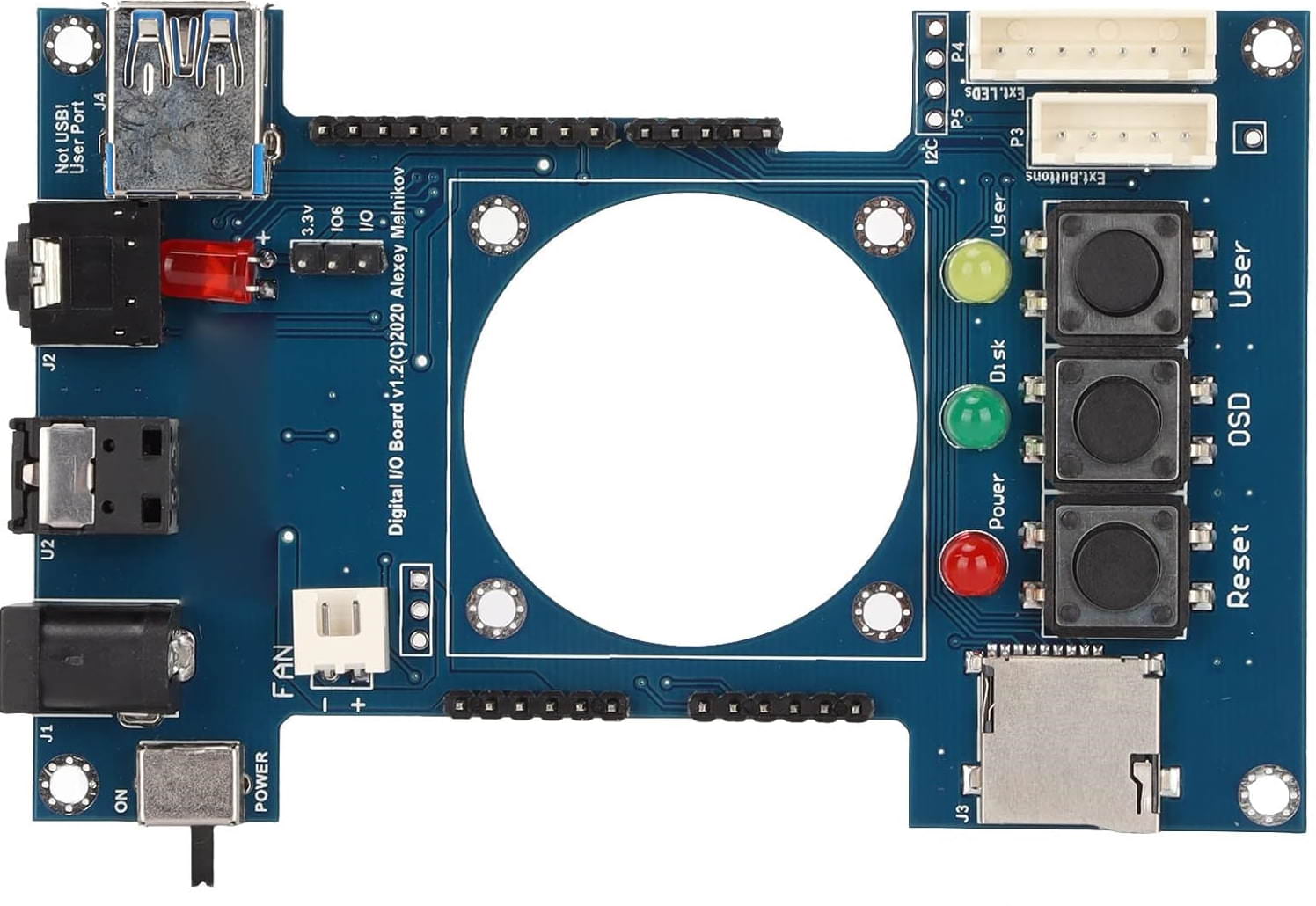

MiSTer Digital IO Board v1.2

MiSTer Digital IO Board v1.2 has the following features

• a dedicated power switch to turn the unit on and off with over-voltage protection,
• a 3.5mm audio jack for ADC In (Tape Input) a separate ADC-In addon board is not required
• 3.5mm Mini-TOSLINK & Digital TOSLINK Connectors
• a secondary microSD card slot (the functionality depends upon the core being used)
• a fan speed control jumper providing 3.3 volts or 5 volts
• three status LEDs (Red, Yellow, Green)
• three large push buttons providing system reset, on screen display menu and game reset
• an expansion connector in the form of a USB 3.0 connector (however this is not for standard USB devices).

The MiSTer 1/0 Digital Board v1.2 includes a jumper for 3.3 or IO selection on the User IO port. Selecting IO provides support for Sega Mega Drive / Genesis / Master System game pads using a SNAC adapter board.

SW3 on the DE10-Nano board must be set to the ON position for the Digital IO board to function!

Suitable For Terasic DE10-Nano FPGA Board MiSTer FPGA Project Official Addon Board

ALL OUR MiSTer BOARDS COME WITH A LIFETIME WARRANTY!

Options for purchace include:

• NO Fan
• Quality Quiet Fan
• Noctua NF-A4x10 Fan

Please select your fan option to see pricing.
