MuRata 5v Switching Regulator (for 48K models)

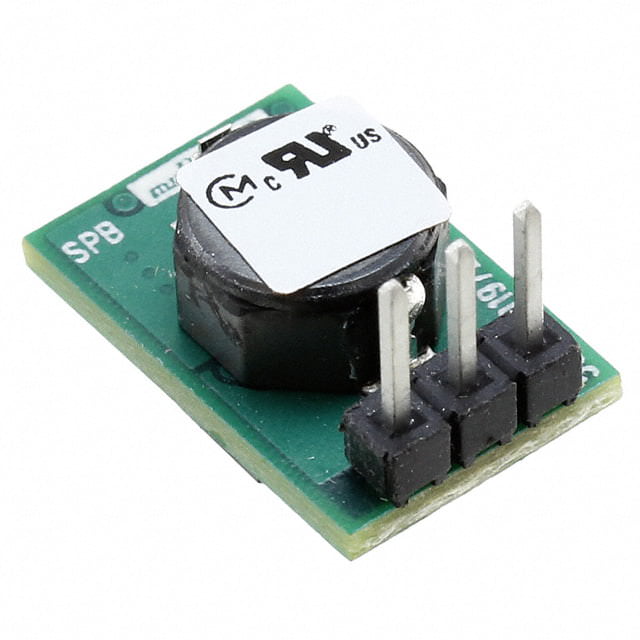

MuRata Switch Mode 5v Regulator (replaces 7805)

A direct replacement for the cheap but inefficient 7805 found in the Spectrum. A high-efficiency switch mode regulator, so wastes very little power as heat (the Spectrum’s heatsink is NOT needed when this regulator is fitted)

• High efficiency 5v 1.5A output
• Short circuit protection
• Over current shutdown
• Over temperature shutdown
• Modified by us for horizontal mounting – This Murata 5v Switching Regulator (for 48K models) is essential for Issue 2 boards in rubber key cases due to space constraints  (Optional on other Spectrum 48k boards. See HERE for the unmodifed vertical mounted version)

Please check the second image for the correct pinout
